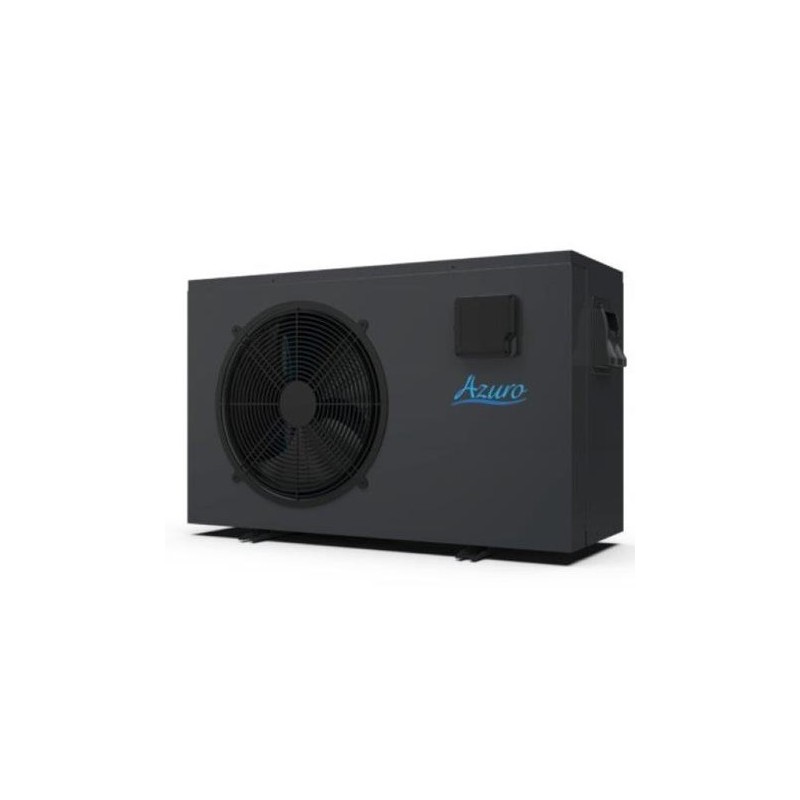

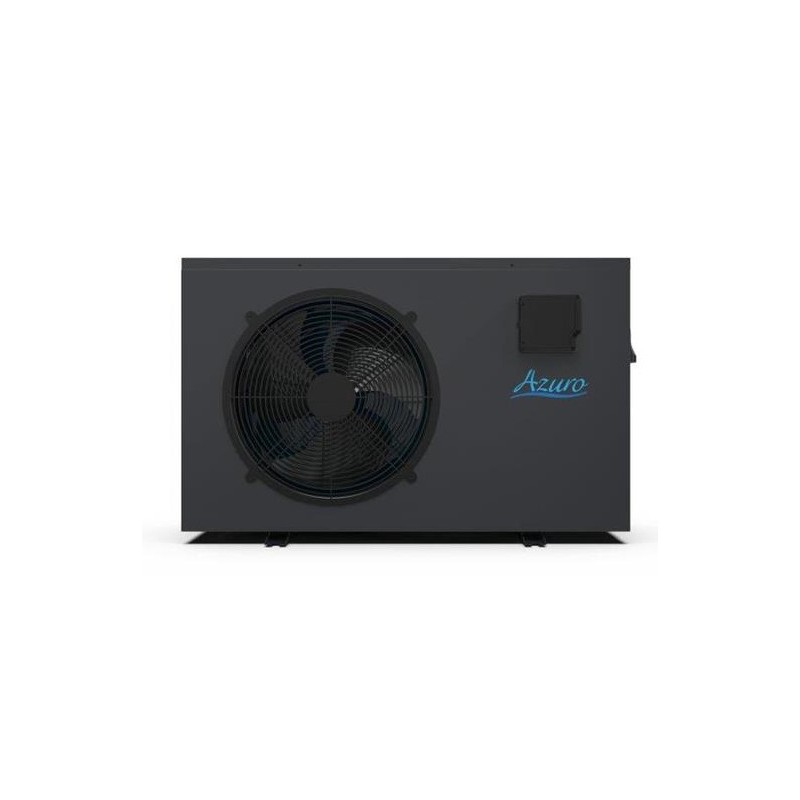

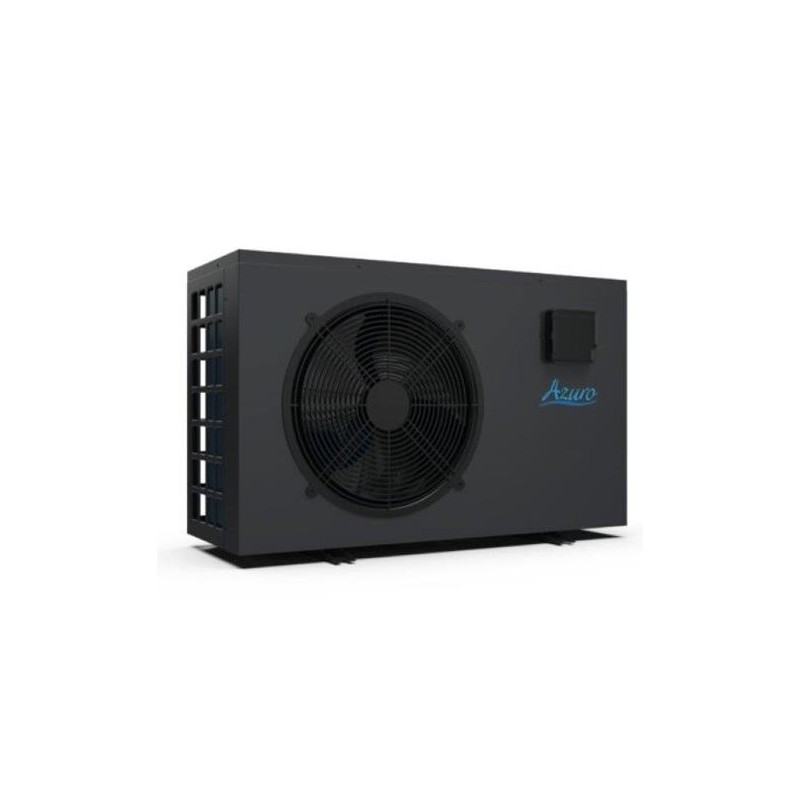

Heat pump Pool Azuro Inverter 16 KW.
The Azuro Inverter 16KW heat pump
heating a swimming pool up to 70 m3 (depending on the region).
The new Azuro Inverter 16KW pool heat pump makes Inverter technology accessible to as many people as possible. Its performance levels rank among the highest on the market with a maximum COP of 10.83, or up to 93% of natural and free energy. Its operation is also silent with 39 to 53 DBA .
The Azuro Inverter 16KW heat pump is intended for heating swimming pools up to 70 m3 (depending on the region). Its latest-generation components provide the best performance and high reliability: Toshiba inverter dual rotor compressor (variable speed), variable speed fan, Twisted Tech titanium interchange, R32 refrigerant (more efficient and environmentally friendly), remote Wi-Fi control (optional).
Inverter technology offers many advantages: significant reduction in electricity consumption (from 25% to 35%), higher lifespan and very quiet operation.
The Azuro Inverter range of pool heat pumps comes in 3 powers from 10 to 16 kw (monophasated).
The benefits of the heat pump Pool Azuro Inverter 16 KW.
- COP up to 10.83: or 93% natural and free energy
- Inverter technology (variable speed compressor and fan): quieter and more economical
- Silent operation: 53 dBA to 1 m
- Reversible model: Heating / Cooling
- Optional Wi-Fi command: remote control by smartphone (iOS / Android)
- Toshiba Inverter double rotary compressor (variable speed)
- Twisted Tech Titanium heat exchanger with antifreeze technology
- More efficient and environmentally friendly R32 refrigerant gas
- Automatic cycle reversal de-icing function
- Operating from -7oC of outside temperature
- Simple and intuitive programming
- Reinforced ABS body (anti-UV)
- Compatible with all treatments (salt electrolyr, chlorine, bromine, ...)
How to choose your heat pump:
The sizing of a heat pump is crucial to take advantage of all its advantages: efficient heating, low electricity consumption, long life and quiet operation. Conversely, the choice of too low power will cause the opposite effects: long and pushy heating, high electricity consumption, a reduced lifespan, ...
These calculations take into account the presence of a blanket on the surface of the pool during the night (bubble sheet, shutter, ...). Without coverage, the power of the heat pump must be doubled due to the calorific losses to be expected.
General features:
- Power supply: 230 V / 50 Hz single-phase
- Cable section to be provided: 3 x 2.5 mm2 (up to 40 m)
- Hydraulic connection: PVC - 50 mm
- Heating temperature range: 15cC / 40C
- Operating range: -7C / 43C
- Reversible model: Heating / Cooling
- LCD programming screen
- R32 refrigeration gas: more efficient and environmentally friendly
- Reinforced and anti-UV ABS body
- Built-in flow detector
- Certifications: standard E.U. and T.U.V.
Accessories included:

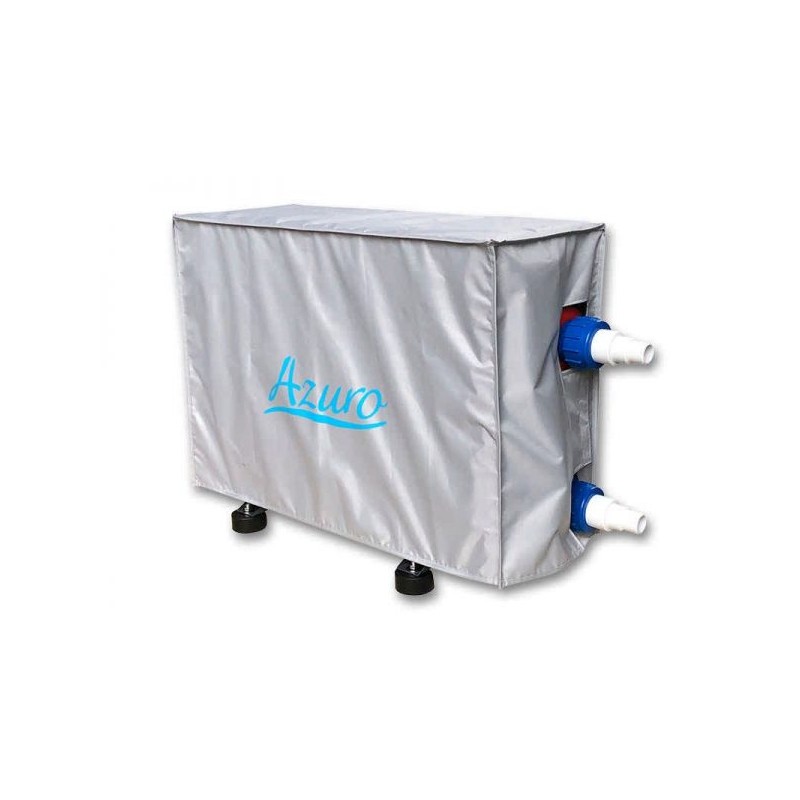

- Insulated wintering cover
- PVC Connectors Diameter 50 mm / 1"1/2
- Anti-vibration support kit
Technical features Azuro Inverter 10 KW:
Pool volume: up to 70 m3
MAX COP: 10.83
Maximum Power Consumed (kW) :d e 0.3 - 2.91 Kw
Max Intensity (A): 2.32 A
Water flow required: 6 m3/h
Dimensions (L x P x H): 100 x 40 x 60 mm
Packaging Dimensions (L x P x H): 103 x 44 x 62 cm
Weight: 67kg
Noise at 1m: < 39 dBA - < 56 dBA
Noise at 10m (Eco - Boost): < 19 dBA - < 30 dBA
Compressor type: Double rotary
Compressor brand: Toshiba
Interchange: Titanium Twist Tech
Performance:
Air 15OC / Water 26oC / Hydro 70% (Standard EU)
Max Returned Power (kW): 6.4 kW
Min Returned Power (kW): 2.44 kW
Power Consumed (kW) Max - Min: 2.44 kW
MAX COP 10.83
Electrical equipment to be expected
- C 10 A curved magnetothermic circuit breaker
- RO2V 3 x 2.5 mm2 power cable (up to 40 m, beyond 3 x 4mm2)
- The heat pump must be connected to a 30-milliampere differential upstream
Guarantee: 2 years
Several choices and versions available on request.
