Heat pump BWT Inverter 17.7kW connected for Swimming pool 75m3

Heat pump BWT Inverter 17.7kW connected for Swimming pool from 40 to 75m3
The connected horizontal BWT Inverter heat pump offers optimal comfort for swimming. Heating power, Air at 26 ° C, Water at 26 ° C: 117.7 kW.For volumes of basins between 40 and 75 m3.
Unlike the compressor of a traditional "On/Off" heat pump, which operates at a constant speed (100%), the compressor of an inverter heat pump can vary its power from 20 to 100%, depending on operating conditions and outside temperature.
Thus, when the outside temperature is low or when the heating demand is high, the Inverter compressor works automatically at high speed (between 50 and 100%).
Conversely, when the heating demand is low, especially around the set point, the Inverter compressor uses its operating ranges at low speeds (between 25 and 50%).
A low-speed inverter compressor guarantees an extremely low noise level, optimised efficiency and longer compressor life.
A BWT Inverter heat pump is therefore reversible, and can therefore heat as well as cool a swimming pool. This function will be appreciated for the comfort of swimming in very hot regions or in the case of pools under shelter during the summer.

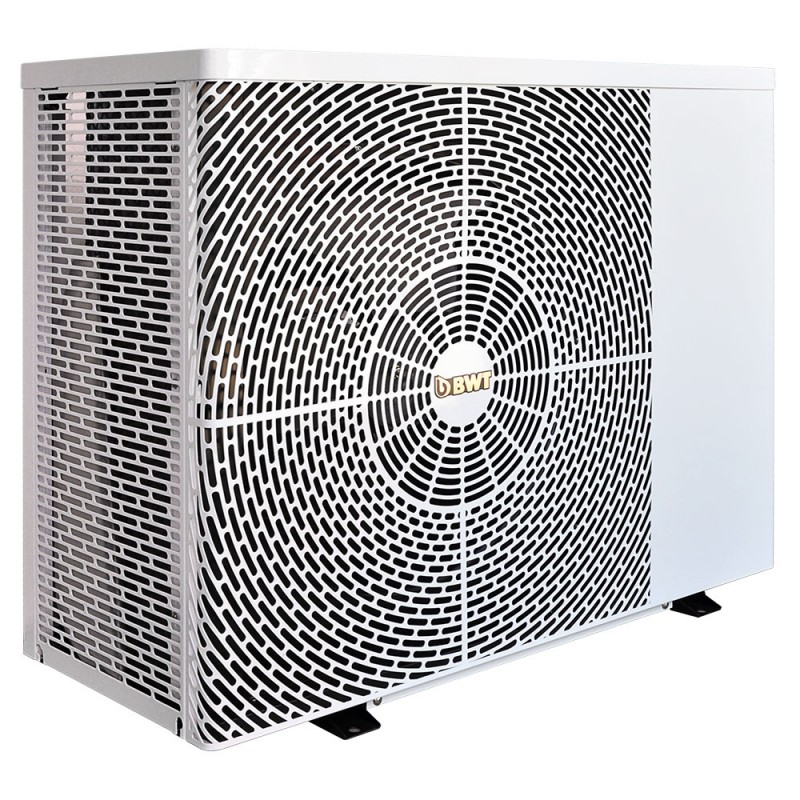

The aluminum body the BWT Inverter connected offers an innovative modern design and resistance to all tests. Equipped with an additional layer of ceramic protection, it is water-repellent and anti-UV, and prevents oxidation and the deposition of dirt or chemical contaminants.
Thus preserved, the bodies of BWT heat pumps are easy to clean, and remain beautiful, smooth and shiny for a long time.
The heat pump exchanger, equipped with a twisted coil, is guaranteed for life and offers optimal performance.

The horizontal BWT Inverter heat pump will slow down considerably, close to the set point and will, therefore, generate only an extremely low noise level compared to that of a traditional "On/Off" machine.
This argument takes on its full importance in the event that the heat pump must be installed at a short distance from the neighbors.

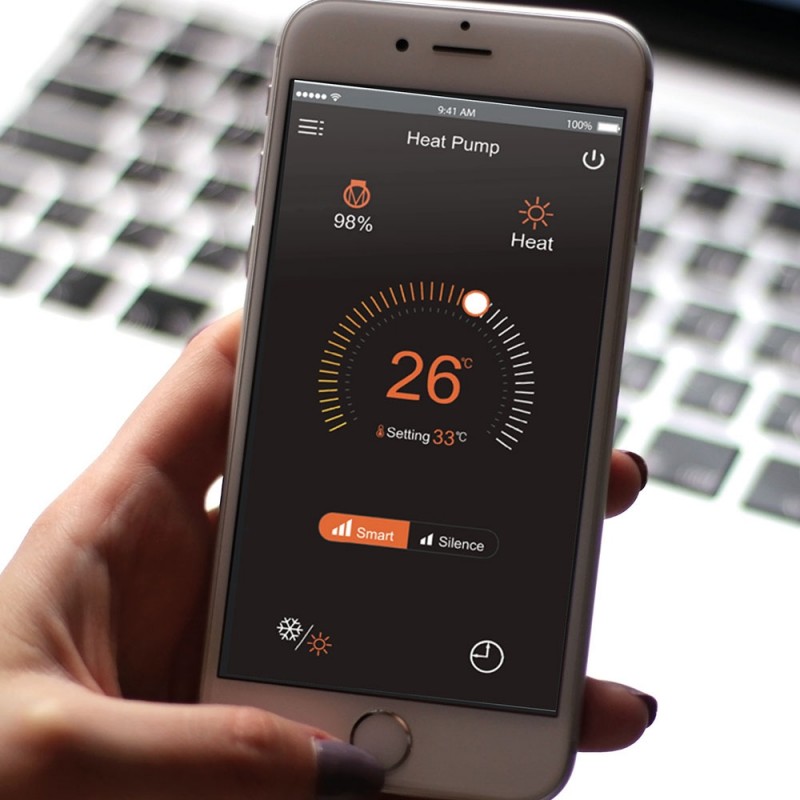

The WIFI module is included as standard in connected BWT Inverter heat pumps. Access the support service in 1 click and follow your information in real time. Wherever you are and whenever you want, easily keep control: Heating capacity, temperature setting, hot/cold modes, timer...

R32 gas is 5% to 10% more efficient than R410A gas.
It is more ecological since it has a Global Warming Power (GWP, indicator that represents the impact of a fluid in terms of global warming) of only 675 (against 2088 for R410A).
It is a totally pure fluid so more easily recyclable.

In order to guarantee you total reliability, all connected BWT Inverter heat pumps are tested before being shipped.
Connected BWT Inverter heat pumps are designed to be simple to install and use.
Connected BWT Inverter heat pumps have the guarantees and performance, certified by the TÜVRheinland.

Guarantees:
-Heat pump guaranteed 3 years
-Compressor guaranteed 10 years
-Titanium coil guaranteed 20 years against corrosion

Specifications:
Model: BWT IC177
Volume of the basin (m3): 40-75m3
Air 26°C / Water 26°C / Hydro 80%
Capacity (W) : 17.7kW
Power consumption (W): 3.30~0.38
COP : 7.3
Air 15°C / Water 26°C / Hydro 80%
Capacity (W) : 9kW
Power consumed (W): 11AkW
COP :4.5
Power supply: Mono 220V-240V/50Hz
Max power (W) : 0.24~1.87
Maximum intensity absorbed (A): 14.3A
Heating temperature range: 15°C / 40°C
Operating range: 0°C / 43°C
Function: Heating / Cooling / Ecosilent / Defrosting
Flow rate (m3/h): 6.5-8.5
Refrigerant: R32
Package dimensions (mm): 360 x 660 x 970
Dimensions (mm) : 954 x 429 x 648
Net weight / Gross (kg) : 63
Noise at 1 m(dB(A)): <67
Noise at 4 m(dB(A)): <28
Noise at 10 m(dB(A)) :56.9
Compressor type: Double rotary
Aluminum body
Exchanger: Twisted Tech Titanium
Function: Heating
Pressure drop (mCE): 1.1

Mark BWT-PROCOPI
Procopi is a French manufacturer of wooden pools and accessories for pool equipment with more than 35 years of experience. Procopi belongs to the BWT Group, the European leader in water treatment.
