Heat pump Heatermax Compact Ubbink for Pool 10m3

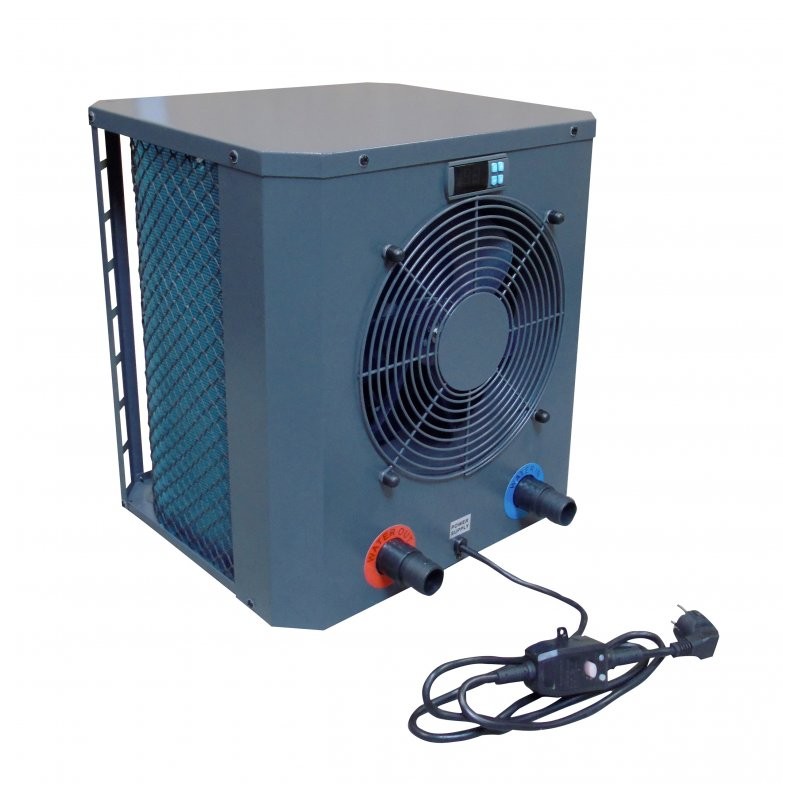

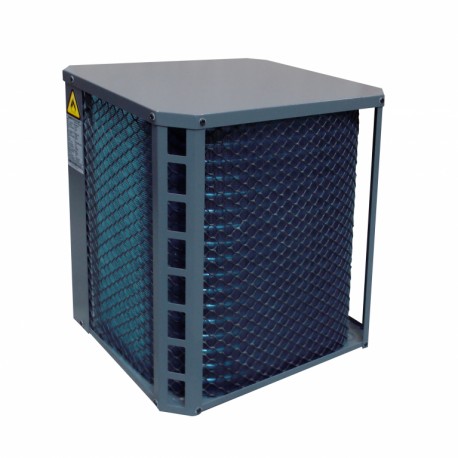

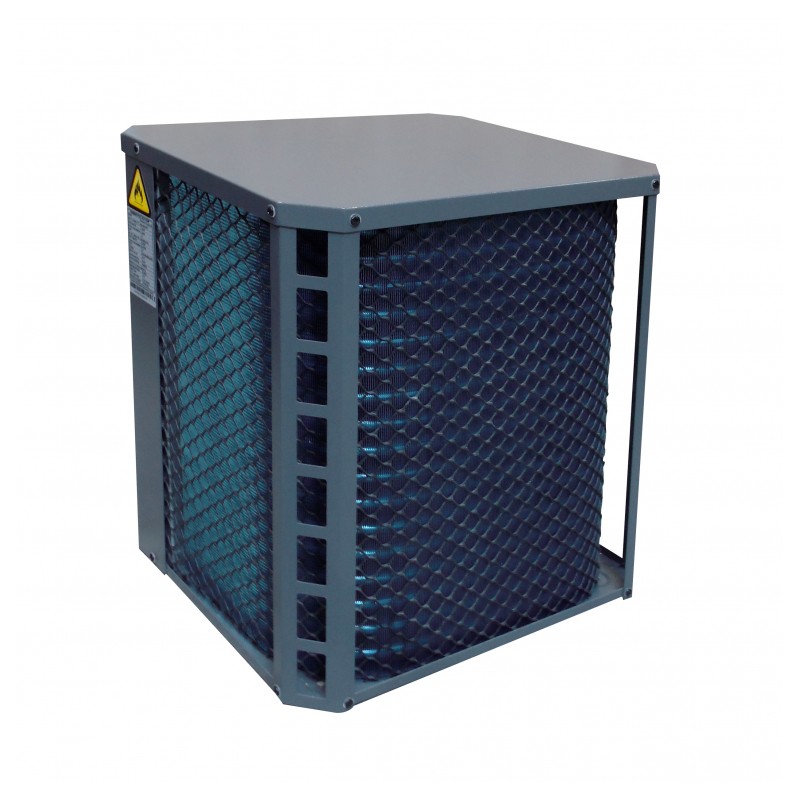

Heat pump Heatermax Ubbink Compact 10 for Swimming pool up to 10 m3.
The Heatermax Compact 10 Heat Pump for Swimming Pool is dedicated to pools up to 10m3 for wooden, tubular, self-supporting, steel-walled pools, spas and paddling pools.
The Heatermax Compact 10 heat pump allows to get to desired temperature in your pool. Easy to install for outdoor use, the Heatermax Compact 10 heat pump has a device called "plug and play": you just have to connect the device directly to a power outlet to make it work. The heat pump will come with a 2.5m power cable as well as an outlet with differential circuit breaker (FI) for added safety. The connection of the CAP is done with a PVC pipe in 32 or 38 mm.
One of the advantages of this heat pump is its ability to operate without a ByPass kit: you can install it right after your filtration system without resorting to a bypass.  With optimized dimensions (310 x 356.5 x 365 mm) and a light weight of 18 kg, the PAC Heatermax Compact 10 can be easily set up near your pool. Designed for accessible use for all, this heat pump model benefits from a digital screen on which you can easily set the desired water temperature up to 40 ° C.

Benefits:
Very efficient to heat the water of a basin of 10 m3 maximum. You control the temperature of a small wooden pool, tubular, self-supporting, with steel walls, spas and paddling pools, with a volume of water of less than 10 m3. The water in the basin can be heated up to 40°C thanks to the air recovery system of the heat pump. For this, the outside temperature must be at least 12 ° C. Depending on the climatic conditions, the performance of the CAP will be as follows:

Air temperature of 28 °C – Water 28 °C – Humidity 80%:
The heating power is 2.50 kW
Power consumption is 0.59 kW
The coefficient of performance (COP) is 4.2

Air temperature of 15 °C – Water 26 °C – Humidity 70%:
The heating power is 1.90 kW
Power consumption is 0.56 kW
The coefficient of performance (COP) is 3.4

The Heat Pump Heatermax Compact 10 is made of galvanized stainless steel thus protected from corrosion.
The heat exchanger has a titanium tube suitable for chlorinated or salt pond water.
The high-quality Mitsubishi rotary compressor with a horizontally operating fan is quiet and discreet (48 decibels).

Guarantees:
-Heat pump guaranteed 2 years
-Compressor guaranteed 5 years
-Titanium coil guaranteed 15 years against corrosion

Specifications:
Model :Heatermax Compact 10
Volume of the basin (m3) : 10m3
Air 15°C / Water 26°C / Hydro 70%
Capacity (W) : 1.90kW
Power consumption (W) : 0.56
COP : 3.4
Power supply: Mono 220V-240V/50Hz
Heating temperature range: 15°C / 35°C
Operating range: 12°C / 42°C
Fuse: 10A
Power Cable: 2.5m with DDR Residual Differential Device
Protection Type:IP X4class 1
Countable salt treatment: yes
Flow rate (m3/h): 2
Refrigerant: R32
Fan direction: Horizotal
Dimensions (mm): 310 x 356 x 760
Net weight / Gross (kg) : 18
Noise at 1 m(dB(A)): <57
Noise at 10 m(dB(A)): 48
Compressor type: Single rotary
Compressor brand: Mitsubishi
Exchanger: Titanium
Function: Heating

Brand: Ubbink
Ubbink designs and manufactures a wide range of pool heat pumps. With a very high reputation among its customers, Ubbink is today the most recognized brand of heat pump.
The PAC Ubbink offer a number of advantages: superior energy performance, quiet operation, excellent service life and a very advantageous quality/price ratio.
In addition, the design and after-sales service are located in France.
