Wood insert Nordica Extraflame Inserto 100 Wide 10kW

Wood insert Nordica Extraflame Inserto 100 Wide 10kW.

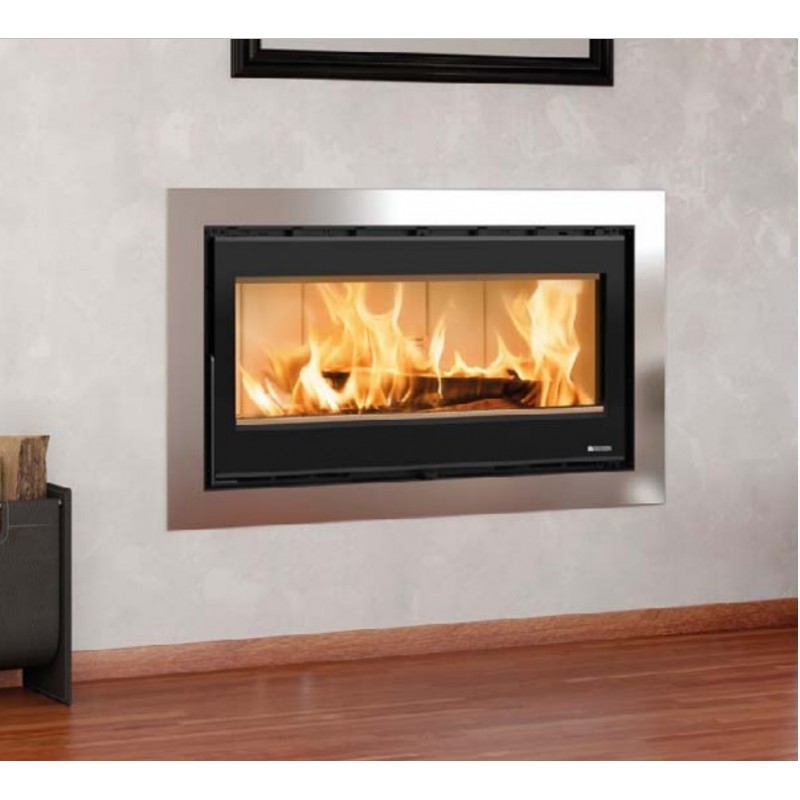

The Inserto 100 Wide panoramic wood insert from La Nordica is made of cast iron with a Nordiker coating. With a nominal power of 10 kW which can heat about 232m3.
The cast iron wood insert uses wooden logs up to 50 cm.

Cast iron insert Inserto Wide 100.
- Interior lining of the fireplace in Nordiker
- Cast iron door and grille
- Drawer for extractable ash
- Ceramic glass resistant to 750 °
- Without ventilation motors
- Size of logs: 30 cm
- Adjustable primary and secondary air
- Afterburner system (low emissions)
- Possibility of taking oxidizing air from the outside
- Fire dish down for better fire vision
- Reversible door
- Optional ventilation with Wind Air Kit.

External direct air outlet:
An air intake system that takes fresh air from the outside for combustion, introducing it directly into the combustion air registers of the unit.
The door of the Stove, made of high quality cast iron, are unalterable over time and guarantee constant tightness.
Clean Glass Control : This system of the specific path of preheated air effectively avoids the fouling of the glass of the fireplace.
NORDIKER : For refractory parts, the La Nordica brand has patented this ultra-resistant material that can withstand very high combustion temperatures. The light color of the material intensifies the brightness of the flame and offers simplicity of maintenance.

Technical specifications:
RDT technology (Waterproof Resistant Doors)
CGC technology (clean glass)
Afterburner system (low emissions)
ASC technology (external air intake)
Power burned: 10 kW
Rated power: 8.1 kW
Heating volume: 232 m3
Yield: 81%

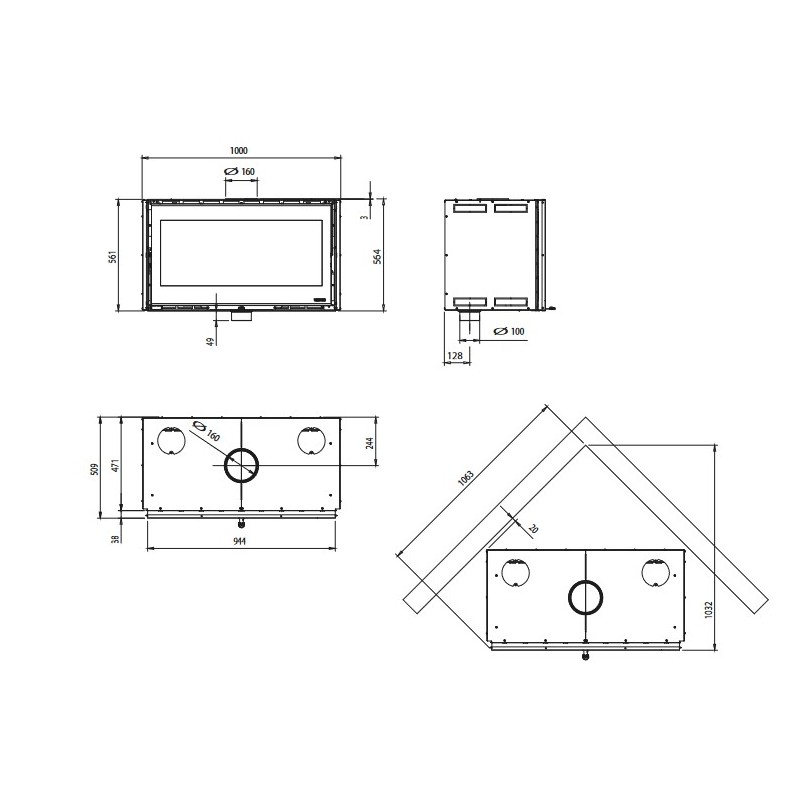

Dimensions: L 1000 x H 561 x D 509 mm
Fireplace dimensions: L 856 x H 327x D 350 mm
Weight: 178 kg
Consumption: 2.3 kg/h
Energy efficiency class: A +
Smoke outlet diameter: 160 mm
Air inlet diameter: 150 mm
5-year warranty
Several choices and versions available on request.
Delivered frameless.
100 Wide satin stainless steel frame, optional on request.

- Green Flame, a French certification that guarantees quality, efficiency and high performance of products
- EN-13229, European standard for inserts (including open inserts) using solid fuels.
- I.Bim SchV, a German standard regulating emissions and emissions in line with climate protection objectives.
- EcoDesign, green design requirements for biomass boilers and heaters, effective January 1, 2022.

All Nordica Extraflame brand products are guaranteed for 5 years by the manufacturer.
Enamelled cast iron, when used correctly, has an almost unlimited lifespan and requires minimal maintenance.

Installation and Warranty : The installation must comply with the instructions for use (manufacturer's recommendation) and must comply with the standards in force in the country (in compliance with D.T.U 24.1 or 24-2 for the France).
As with all wood or pellet stoves, the appliances are to be adjusted according to the natural draft of your installation.
